Botswana Pressed Steel (HDG or Stainless Steel) Sectional Rectangular Water Tank Panel type (Optional)
Pressed steel water tank panels in Botswana are typically 1220×1220mm (British Standard) and available in both HDG and stainless steel. Panels feature different reinforcement patterns—standard X-type or big pattern cross type or customized embossing—to meet varied structural and aesthetic needs. Flange angles include 90° or 45°, depending on installation layout. With thicknesses up to 6mm and zinc coating ≥70μm, these panels offer strong durability for municipal, industrial, and agricultural water storage. Optional finishes include HDG, white polyester powder coating, or black epoxy asphalt paint.
The X-type pressed steel panel features a symmetrical cross-shaped embossing that extends diagonally from each corner to the center. This classic design enhances rigidity and central strength, making it ideal for general-purpose water tanks. It is widely used due to its efficient load distribution, cost-effectiveness, and compatibility with standard installation systems.
The cross big pattern panel adopts a more prominent and broader surface embossing—such as an enlarged X, diamond, or wave-like shape. This type offers greater surface reinforcement and enhanced resistance to deformation, especially under heavy water pressure. It is typically used in large-volume, elevated, or customized tanks where both structural strength and visual appeal are important.

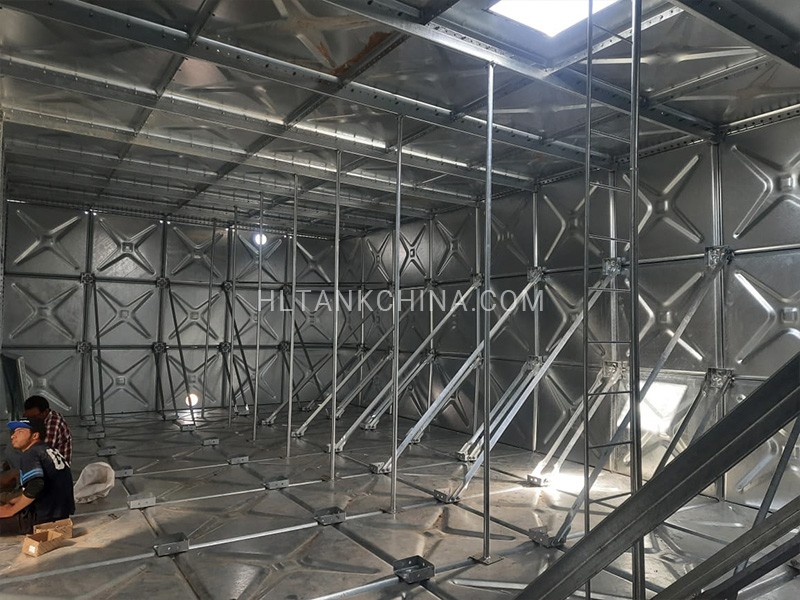

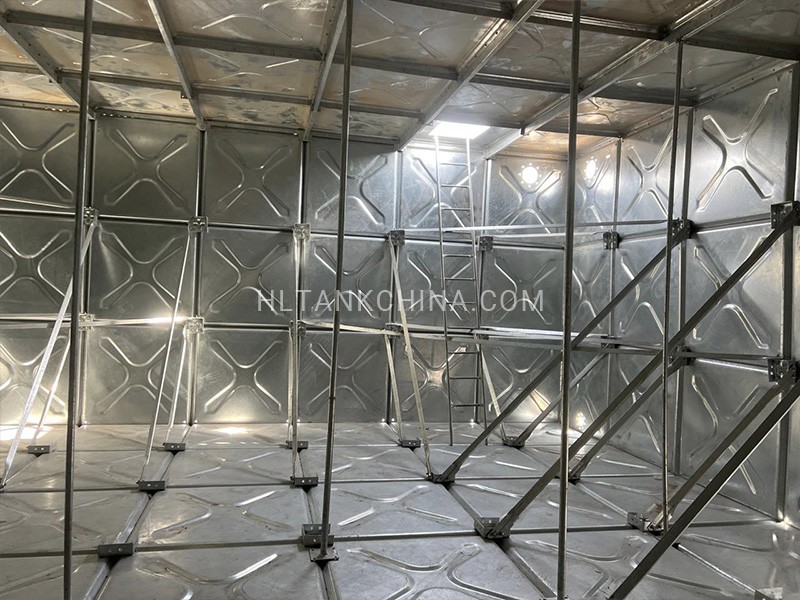

BS 1564:1975 Inner Structure Design for HDG (Hot dip galvanizerd) and Stainless Steel in Botswana
The inner structure of the sectional water tank is designed according to BS 1564:1975 standards, available in both HDG and stainless steel materials. It features X-pattern embossed panels, cross bracing, and vertical supports for maximum strength and durability. All components ensure corrosion resistance and comply with BS hygiene and structural requirements.

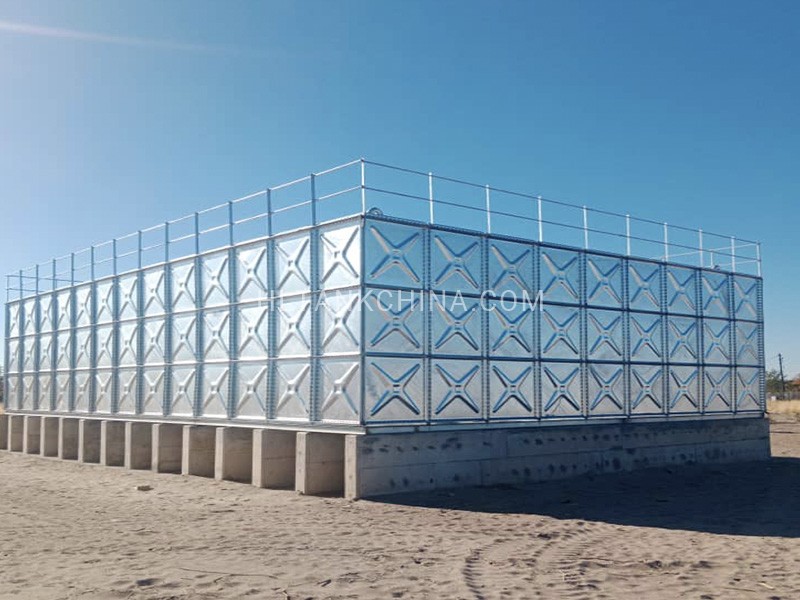

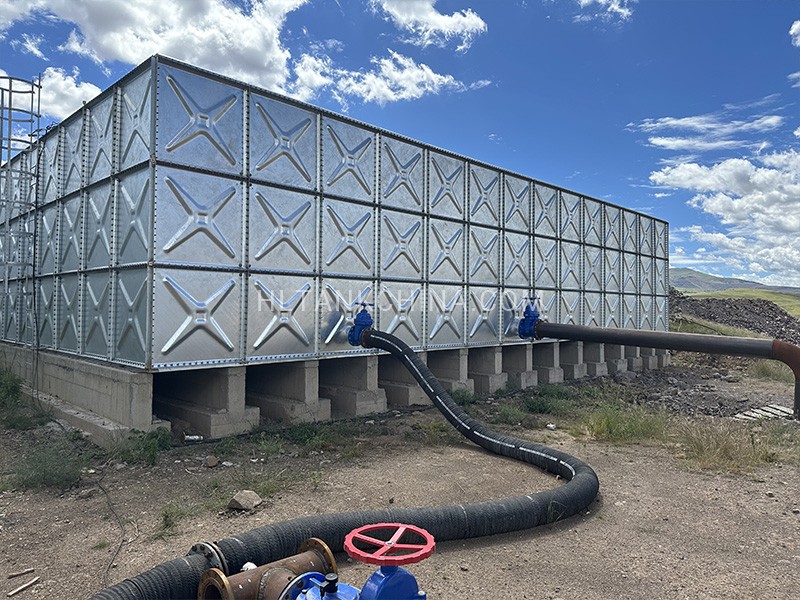

Installed on the ground pressed steel sectional rectangular water tank projects in Botswana
Installed on the ground, our pressed steel sectional rectangular water tank projects in Botswana are engineered for durability and long-term water storage. These tanks are constructed using high-quality HDG or stainless steel panels, ensuring strong corrosion resistance and structural integrity. Designed in compliance with BS 1564 standards, they are ideal for municipal, agricultural, and industrial applications, offering reliable performance even in harsh environmental conditions.

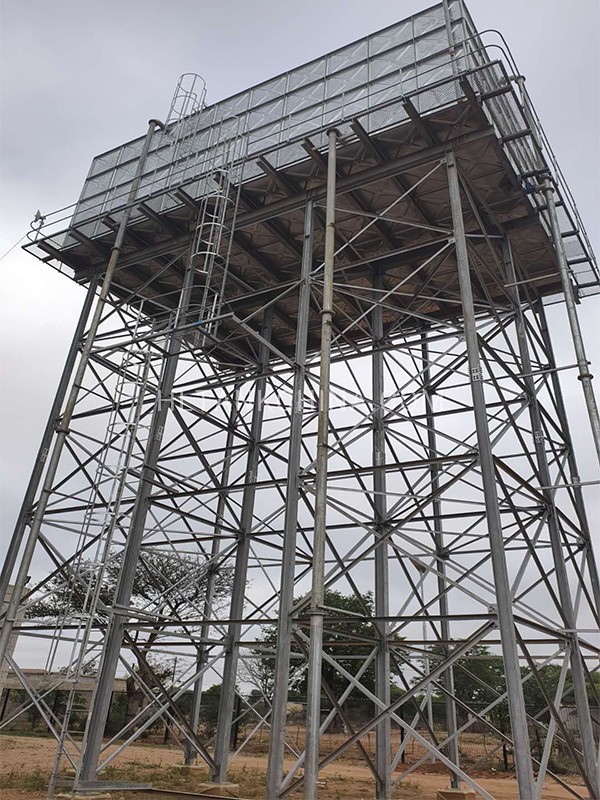

Elevated pressed steel sectional rectangular water tank projects in Botswana
Our elevated pressed steel sectional rectangular water tank projects in Botswana are designed for reliable overhead water storage, ensuring strong water pressure and consistent supply. Built using high-quality HDG or stainless steel panels and conforming to BS 1564 standards, these tanks offer excellent corrosion resistance and structural strength. The elevated design is ideal for remote or off-grid installations where gravity-fed water distribution is essential. With modular construction, they are easy to transport, assemble, and customize based on project needs.

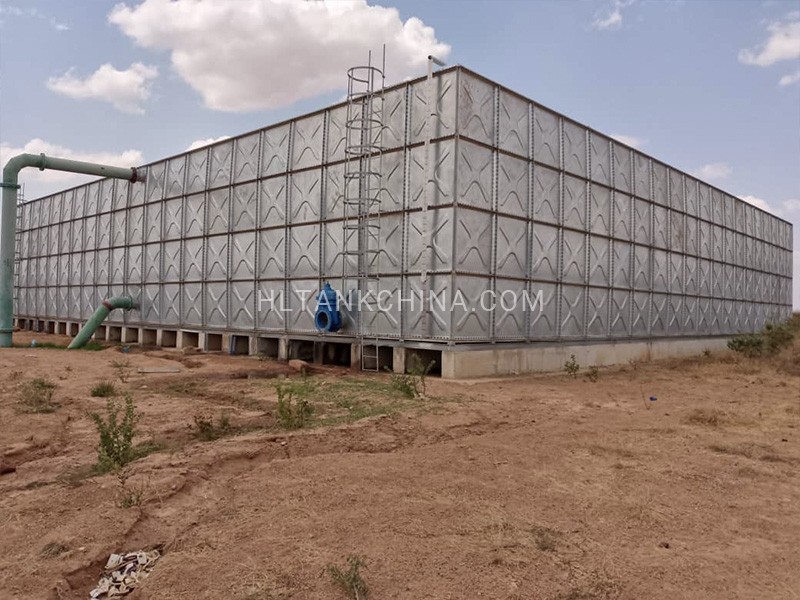

Pressed steel sectional rectangular water tank projects in other Africa Countries
Our pressed steel sectional rectangular water tanks have been successfully installed across various African countries, including Nigeria, Ghana, Kenya, Zambia, and South Africa. Designed according to BS 1564 standards, these tanks provide durable and corrosion-resistant water storage solutions. Available in both ground-mounted and elevated configurations, they are suitable for municipal, agricultural, and industrial use. With customizable sizes, panel thicknesses, and coating options (HDG or stainless steel), our tanks adapt to diverse climate and site conditions across the continent.
