What is an FRP Water Tank Panel Flange Drilling Machine?
An FRP water tank panel flange drilling machine—also known as a GRP (Glass Reinforced Plastic) or SMC (Sheet Molding Compound) water tank drilling machine—is a specialized industrial tool engineered for precision drilling of bolt holes along the flanged edges of modular FRP tank panels. These holes are crucial for assembling water tanks using bolts, EPDM rubber gaskets, sealing strips, and washers, ensuring both structural strength and watertight performance.
In modular FRP tank systems, each panel connects to adjacent panels via these flanges. Accurate, clean, and uniformly spaced drilling is essential to prevent misalignment, leakage, and uneven pressure distribution, which can lead to long-term failure or costly rework. Poor drilling also compromises gasket compression and sealing integrity.
This machine ensures consistent hole spacing (typically 100mm or 150mm), with ±0.5 mm precision. It supports interchangeable panels for mass production and compliance with standards like SS 245 or ISO tank specifications. Advanced models can also drill overflow ports, drainage, or sensor holes at the rear or center of the panel.
Built to handle high-tensile FRP materials, the machine uses carbide-tipped drill bits to prevent cracking or fiber tear-out. A robust clamping or jigging system holds panels securely, maintaining accuracy throughout. This blend of mechanical precision, speed, and reliability makes it ideal for both factory production and on-site fabrication, reducing labor and material costs while ensuring assembly quality.

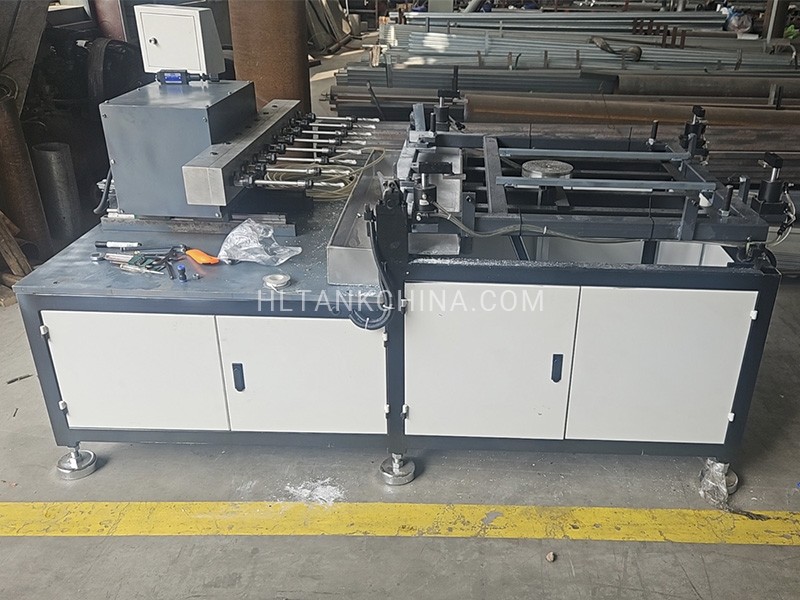

Fully Automatic FRP Water Tank Panel Drilling Machine for Flange Edges and Backside
A fully automatic FRP water tank drilling machine is an advanced, high-efficiency system designed to drill bolt holes on all four flange edges and the backside of a standard FRP panel in a single automated operation. This equipment is ideal for large-scale water tank manufacturers who require high precision, speed, and consistent quality.
Key Advantages of GRP water tank panel drilling machine
GRP panel 5-Side Drilling:
Automatically drills all four flange edges (left, right, top, bottom) plus the back panel without repositioning, significantly reducing handling time.
Precision and Consistency:
Equipped with CNC or programmable controls to ensure uniform hole spacing, correct alignment, and repeatable accuracy across hundreds of panels.
Increased Efficiency:
Compared to manual or semi-automatic drilling, it cuts production time by over 70%, enabling faster panel preparation for tank assembly.
Labor Cost Reduction:
One operator can manage the entire process, reducing dependence on skilled labor and improving workplace safety.
Damage Prevention:
The machine applies controlled pressure and optimized drill speed to avoid cracking or fraying of the fiberglass material.
Customizable for Different Panel Sizes:
Supports panels like 1000×1000 mm, 500×500 mm, etc., and can be adjusted or customized bolt patterns.
This fully automatic drilling solution is ideal for FRP water tank manufacturers aiming to scale up production, reduce labor costs, and improve assembly accuracy.
| Feature | Description |
|---|---|
| Designed for flange drilling | Accurately drills bolt holes along panel edges |
| Consistent hole spacing | Ensures panels align perfectly during assembly |
| Clean and chip-free drilling | Prevents cracks and fiber fraying |
| Suitable for FRP materials | Works well with fiberglass-reinforced plastic |
| Efficient and user-friendly | Improves productivity and installation quality |

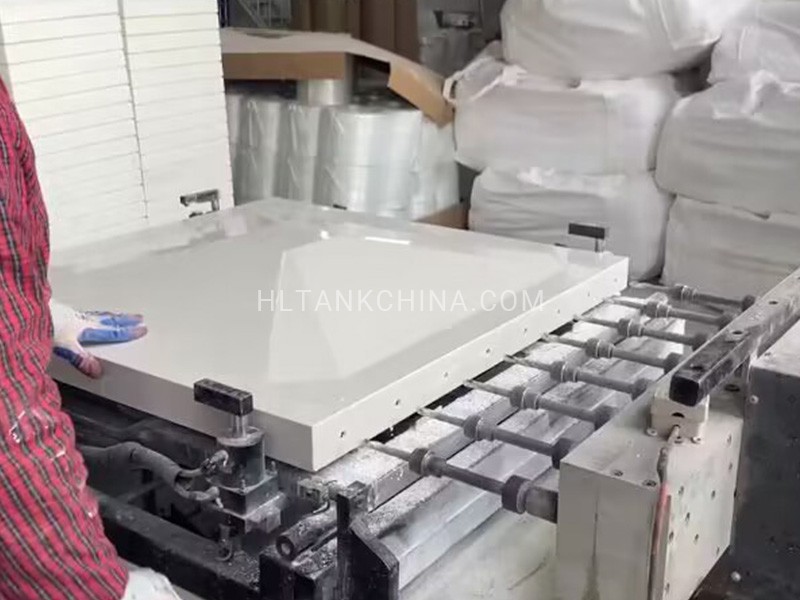

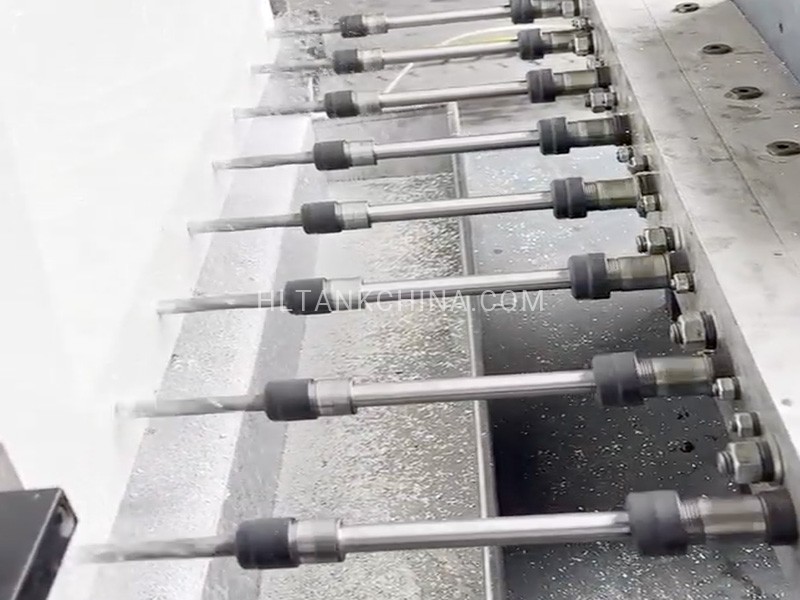

How a Fully Automatic FRP Water Tank Panel Drilling Machine Works:
A fully automatic FRP water tank drilling machine is designed to accurately and rapidly drill bolt holes on fiberglass water tank panels. Watching the machine in action reveals a high level of coordination between mechanical arms, clamps, sensors, and multi-head drills — delivering speed and precision that manual labor cannot match.

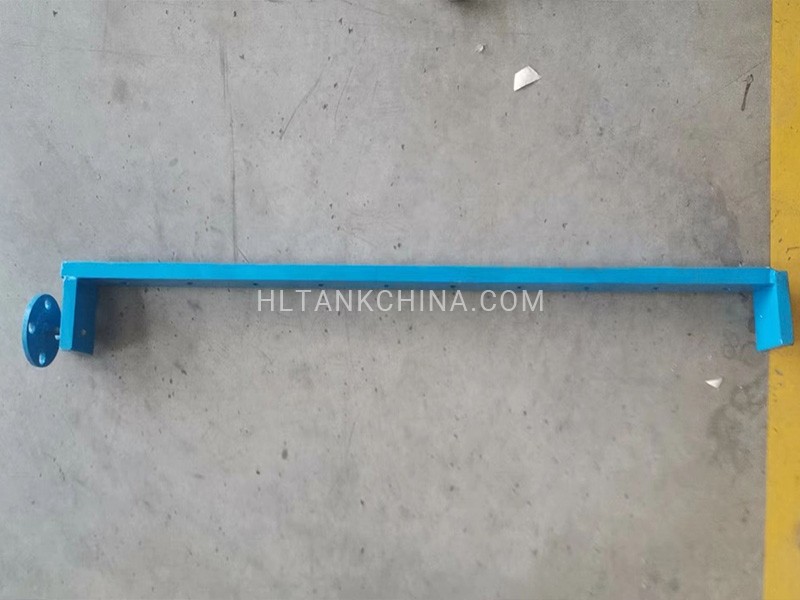

Manual FRP Water Tank Drilling Tool for On-Site Flange Hole Preparation
A manual FRP water tank drilling tool is a portable, operator-controlled device specifically used for drilling bolt holes around the flange edges of FRP panels during on-site tank assembly. Unlike automated machines, this tool is compact, flexible, and ideal for installation teams working in the field or at locations where electricity and automation are limited.
This manual tool is an essential part of any FRP tank installation toolkit, offering flexibility and control in environments where automation is impractical. Though it requires skilled handling, it ensures field-ready adaptability and is a cost-effective solution for accurate and reliable panel drilling.
| Feature | Description |
|---|---|
| Lightweight and Portable | Easy to carry to installation sites, rooftops, or remote areas |
| Suitable for All Panel Sizes | Can be used on 500×500 mm, 1000×1000 mm, and other FRP panels |
| Supports Flange Hole Drilling | Designed for accurate drilling along panel edges for bolt assembly |
| Manual Control, Adjustable Jig | Operators manually align and drill based on pre-marked positions |
| Cost-Effective | Ideal for small projects, site modifications, or budget-sensitive jobs |
Comparison Between Automatic and Manual FRP Water Tank Drilling Tools: Efficiency, Accuracy, and Application
Choosing the right drilling tool for FRP water tank panel assembly depends on factors such as project size, budget, required precision, and working environment. Here’s a detailed comparison between automatic and manual FRP water tank drilling systems to help manufacturers and installers make an informed decision.
Feature-by-Feature Comparison:
| Aspect | Automatic Drilling Machine | Manual Drilling Tool |
|---|---|---|
| Operation Mode | CNC-controlled / semi- or fully automatic | Operator-controlled (handheld drill or basic jig) |
| Hole Locations | All 4 flange edges + optional back panel (simultaneous) | Manually drilled one hole at a time along flange edges |
| Speed & Efficiency | High-speed: drills one panel in 30–60 seconds | Slower: depends on operator, 3–5 min per panel (typical) |
| Hole Accuracy | High precision (±0.5 mm), uniform spacing | Moderate: relies on manual marking and alignment |
| Productivity | Ideal for mass production & factory assembly lines | Best for small projects or on-site assembly |
| Labor Requirements | 1 operator can manage entire operation | Skilled workers required for marking, clamping, drilling |
| Power Source | Electricity (CNC, servo motors, etc.) | Handheld drills |
| Portability | Stationary, needs fixed space and setup | Highly portable, suitable for rooftops or field installations |
| Cost | High initial investment, low per-unit cost in volume production | Low equipment cost, higher labor cost over time |
| Safety | Enclosed system with dust collection (optional) | Exposed to fiberglass dust and drill vibratio |
| Customization | Programmable for multiple panel sizes and bolt patterns | Customization done manually per project |
Summary:
Automatic Drilling Machines are ideal for:
1. FRP tank factories and OEM/ODM suppliers
2. Projects with high volume and tight production timelines
3. Companies seeking precision, speed, and cost-efficiency in the long term
Manual Drilling Tools are ideal for:
1. On-site installation or remote area assembly
2. Small-scale or customized projects
3. Contractors working on a limited budget or with portable equipment needs
Conclusion:
Both systems play a critical role in FRP water tank production and installation. While automatic machines deliver unmatched efficiency and accuracy for factory-based operations, manual tools offer flexibility and adaptability for installers working in the field.
