underground water tanks

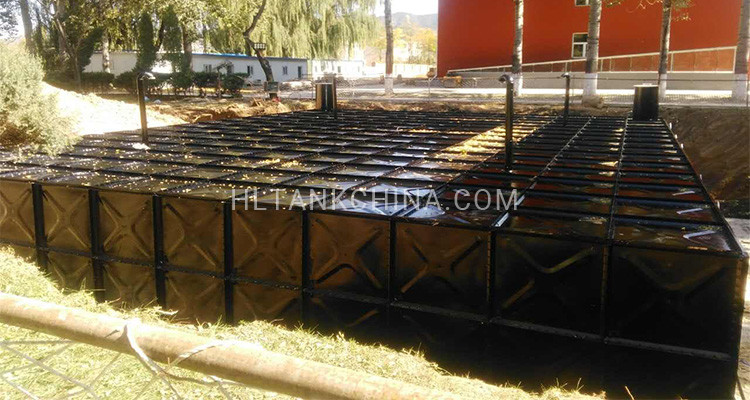

*Note: GSC is the abbreviation of Galvanized and Stainless steel Compound. This large water tank is our real national project, do not copy.

Huili Water Tank Descriptions:

1. GSC is the short of stainless steel panel and hot dip galvanized panel compound which  consists of three types of panels which can customize capacity according local area.

2. The water tank height is usually set within 4 meters,we have set the water tank height up to 6 meters with my engineer good design.

3. GSC water tank structure is strong which can be used in underground and above ground used for storing firefighting,domestic water.

4. GSC water tank warranty time is 18 months since shipped out factory or 12 months since installation,based on close one.

5. GSC water tank mainly used in hospital,residence,campus,supermarket,airport,football ground,and somewhere lacking water.

Huili GSC water tank features:

1. All stainless and galvanized compound materials and national standard.

2. Panels consist of 1000x1000mm,1000x500mm,500x500mm three types.

3. Water tank uses the different panel thickness according to above table.

4. U-steel is hot dip galvanized or painted into red color according to customer’s requirement.

5. It is alternative to be insulated or not as choices

Water tank height VS board thickness

Height

(m)

Bottom Board

(mm)

Side 1

(mm)

Side 2

(mm)

Side 3

(mm)

Side 4

(mm)

Side 5

(mm)

Top board

(mm)

1 3.5 3.5 3
1.5 3.5 3.5 3.5 3
2 3.5 3.5 3.5 3
2.5 3.5 3.5 3.5 3.5 3
3 3.5 3.5 3.5 3.5 3
3.5 3.5 3.5 3.5 3.5 3.5 3
4 3.5 3.5 3.5 3.5 3.5 3
4.5 3.5 3.5 3.5 3.5 3.5 3.5 3
5 3.5 3.5 3.5 3.5 3.5 3.5 3

Connect to your next successful water tank project !
