Project Description

galvanized steel water tank price

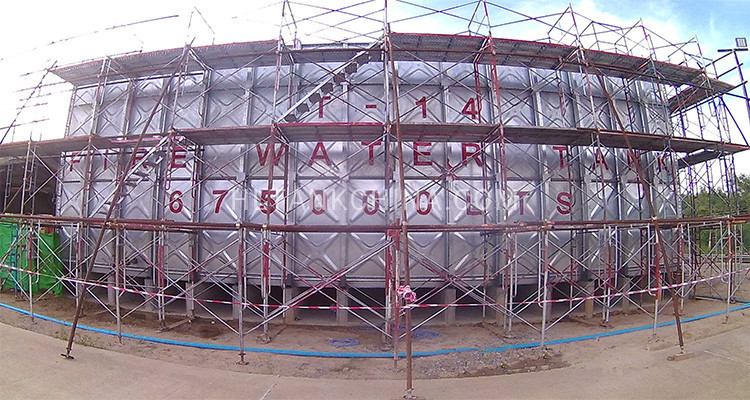

*Note: This large water tank is our real project in Myanmar,do not copy.

Huili Water Tank Descriptions:

1. Hot dip galvanized water tank consists of three types of panels which can customize capacity according local area.

2. The water tank height is usually set within 4 meters,we have set the water tank height up to 6 meters with my engineer good design.

3. Hot dip galvanized water tank structure is strong which can be used in underground and above ground used for storing firefighting,domestic water.

4. Hot dip galvanized water tank warranty time is 18 months since shipped out factory or 12 months since installation,based on close one.

5. Hot dip galvanized water tank mainly used in hospital,residence,campus,supermarket,airport,football ground,and somewhere lacking water.

Huili hot dip galvanized water tank features:

1. All hot dip galvanized materials and national standard.

2. Panels consist of 1000x1000mm,1000x500mm,500x500mm three types.

3. Water tank uses the different panel thickness according to above table.

4. U-steel is hot dip galvanized or painted into red color according to customer’s requirement.

5. It is alternative to be insulated or not as choices

Water tank height VS board thickness

Height

(m)

Bottom Board

(mm)

Side 1

(mm)

Side 2

(mm)

Side 3

(mm)

Side 4

(mm)

Side 5

(mm)

Top board

(mm)

1 3 3 2
1.5 3 3 3 2
2 3 3 3 2
2.5 4 4 3 3 2
3 4 4 3 3 2
3.5 4 4 3 2.5 2.5 2
4 5 5 4 3 2.5 2
4.5 5 5 5 4 3 2.5 2
5 5 5 5 4 3 2.5 2
